Biochemistry Analysers

Nv-200 Fully Automated Biochemistry Analyzer

General information:--Machine type : Random access
-Test speed : Constant 50 test/hour (Mono reagent or double reagent)
-Test principle : Colorimetric method, Turbidimetry
-Test method : 1 point end, 2 point end, Fixed-Time, Kinetics
-Calibrator type : Linear & Non-linear
Reagent unit: Reagent tray : 40 reagent positions 40 for R1 & R2), Non-stop cooling system with peltier pad inside, 24 hours 2ºC to 14ºC.
Reagent volume : 10-300µl, step by 1µl
Reaction unit: Reaction tray : 44 reaction cuvettes, new amorphous optical plastic reaction cups, perfect transmittance
Reaction volume : 150µl-330µl
Temperature : Heating coil incubation system, reaction temperature (37±0.1C)
Sample unit: Sample tray : 40 sample position
Sample : Micro cup, sample cup, primary tube & blood collection tube (12-13)mm * (25-100)mm
Sample volume : 2-30µl, step by 0.1µl
Sample probe: Liquid surface detection, timely tracking for liquid volume. Collision Protection
Mixing system: Mixer : Paddle-type mixing, effective and reducing carryover
Optical system: : Light source : Halogen lamp
Wavelength : 340nm; 405nm; 450nm; 505nm; 546nm; 578nm; 630nm; 700nm (4 more options)
Absorbance range : 0-4.0 Abs
Resolution : 0.0001 Abs
Operating system: Operation system : Windows 7, Windows 8, Windows 10
Report printing : 6 formats option, support custom formats
Interface : pattern, TCP/IP network interface
Working conditions: Water consumption : 8L/hour (maximum)
Dimension : 780mm * 565nm * 1120mm (L*W*H)
Weight : 80kg
Power Supply: 220V ± 10%, 50/60 Hz, 2000VA,
Earthing voltage < 5V online ups (230V) with isolated transformer 2KVA

Semi Automated Biochemistry Analyzer NV-50

Methods	Absorbance End point with Standard / Factor Fixed time Kinetic Differential Coagulation Multipoint Up to 10 Standards
Principles	Absorption Spectrophotometry
Measurement Range	-0.1 to 3.0 Absorbance
Filters	340, 405, 505 , 546 , 578 , 630 and 700 nm interference type
Thermostat System	Accuracy ± 0.1 °C Peltier regulated 25°C ,30 °C and 37° / RT
Programming	Table of test:- Up to 235
	Table of Units:- Up to 9
	Memory:- 1000 Test Results
	Quality Control Storage:- Last 30 Results
Cuvettes	Flow Cell of 18 or 32 Removable Cuvettes:- Macro , semi-micro and micro plastic or glass cuvettes
Light Source	Halogen Lamp 12v/20W or 6v / 10W
Power / Dimensions	Voltage: 110-220V / 50 -60 Hz Power supply : <80 W Temperature: 10 to 40 °C Relative Humidity: 80 % Dimensions: (45 x 41 x 17) cm
Quality Control	3 Controls Per Test – Low , Medium , Higher Levy Jennings Charts & Westgard’s Rules

Inquiry Now

Centrifuge

Benchtop High Speed Refrigerated Centrifuge (BT20R)

Features:-

Microprocessor control
Memory(Program) function
AC Brushless motor and maintenance free
Electrical lid lock
Emergency lid lock helps to open lid and take our samples when power off
LCD display all the parameters
Stainless steel centrifugal chamber, easy to clean

Specifications:-

Max speed	20000r/min
Max capacity	4×100ml
Max RCF	27800×g
Temperature	-20ºC to 40ºC
Timing	0~99min
Noise	58Db (A)
Power supply	AC220-240V 50/60Hz 10A 0.8KW
Dimensions	620500350
Weight	75KGS

Table Low Speed Centrifuge

NV5A

Model : NV5A
Max Volume : 24*15ml
Max speed : 4000rpm
Power Supply : 220V 50 Hz
Power : 300W
Max.RCF : 2778 xg

Inquiry Now

Table Low Speed Centrifuge (NV-4N)

NV-4N

Microprocessor control with Brushless Motor.
LCD Display the parameters of speed ,timer,RCF,Program(Memory)information, Acceleration, Deceleration information and Error code information.
Steel centrifuge body and stainless steel chamber are autoclaveable and resistant detergents and disinfection liquids.
Gas hinge for lid drop protection.
Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.
Emergency lid lock release when power failure.
Window on lid for speed calibration and noise measurement.
Continuous operation, working continuous according the set time.
10 kinds of Program(Memory) and 10 kinds of Acceleration&Deceleration for choice.
If ask for more Programs please specially mentioned when place the order.
Automatic troubleshooting with indication of error code and alarm on the screen.
Wide choice of Swing rotors and angle rotors and adapters.
With CE and ISO9001:2008,ISO13485 certificate

Speed range(rpm)	0-4000rpm adjustable
Max capacity(ml)	24x15ml
Rcf range(xg)	0-2778xg adjustable
Noise(dba)	58dB(A)
Time Range	1-99minutes adjustable
Speed accuracy	±20r/min
Dimension (mm)	510400280mm
Net Weight (without rotor)	28KGS
Power Supply	AC220-240V,50/60HZ,2A,0.3KW

Table Low Speed Centrifuge (NV-4C)

Application:-

Our clinical Centrifuge is ideal for the separation of serum, plasma, urea, blood samples and other routine applications in hospital and research laboratories .

Features:-

Plastic housing, small and light
Brush-less motor drive, no powder pollution .
Precise control speed and time with efficient separation .
For 15ml cell culture tube and full line of collection tubes, ideal for a clinical lab .

Technical Specifications:-

Max. RPM/RCF	Angle rotor	4,000/2700xg
Max Capacity	Angle rotor	8x15 ml
Timer	1~99 min	RPM/RCF conversion	Yes
Noise Level	<55	Acc/Dec(sec)	There are 10 rates for your choice
Digital Display	Yes	Safety lid lock system	Safe lid lock
Power supply	220V 60 Hz	Temperature range	Normal system
Product Dimension	260x265x 310mm	Package dimensions	300x300x350mm
Weight (KG)	N.W. : 7 KG	G.W: 8.5 kg (Cartoon box)
Certificates	CE, ISO, Calibration, report are available

Table Low Speed Centrifuge (NV-4A)

Application:-

Our clinical centrifuge is ideal for the separation of serum, plasma, urea, blood samples and other routine applications in hospital and research laboratories.

Features:-

Melt housing, 304# stainless steel centrifugal chamber, safe and reliable.
Brush-less motor drive, maintenance is free.
Microprocessor control and digital display speed, RCF and time technique parameters.
Stable quality makes sure a ideal centrifugal effect.

Technical Specifications:-

Max. RPM/RCF	Angle rotor	4,000/2700xg
Max. RPM/RCF	Swing Out rotor	4,000/2690xg
Max Capacity	Angle rotor	24x15 ml
Max Capacity	Swing Out rotor	6x50 ml
Timer	1~99 min	RPM/RCF conversion	Yes
Noise Level	<55	Acc/Dec(sec)	There are 10 rates for your choice
Digital Display	Yes	Safety lid lock system	Safe lid lock
Power supply	220V 60 Hz	Temperature range	Normal system
Product Dimension	460x350x256mm	Package dimensions	560x380x330mm
Weight (KG)	N.W. : 24 KG	G.W: 27 kg (cartoon box)
Certificates	CE, ISO, Calibration, report are available

Table-top Low Speed Centrifuge (NV-5C)

NV-5C

Model : NV-5C
Max Volume : 4*250ml
Max speed : 500rpm
Max.RCF : 4650 xg
Power Supply : 220V 50 Hz
Power : 500W

Inquiry Now

Table top high speed centrifuge (B-20 Centrifuge)

B-20 Centrifuge

Model : B-20 Centrifuge
Max Volume : 4*250ml
Max speed : 20000rmp
Power Supply : 220V 50Hz
Power : 500W

Inquiry Now

E S R Analyzer

Features:-

1.) Accurate and Reliable
2.) Clean and Safe
3.) Fast and Efficient
4.) Quick and Easy

Technical Specification:-

1.) Measuring Time: 30/60 Minutes
2.) Capacity: 20 pcs
3.) Maximum Measuring Speed : 40 pcs/h
4.) Mechanical / Optical Precision of detection : +/- 0.1 mm
5.) Reproducibility of Analysis: <3% CV
6.) Memory Capacity: 260 pcs
7.) Printer Type: Built-in Printer

Inquiry Now

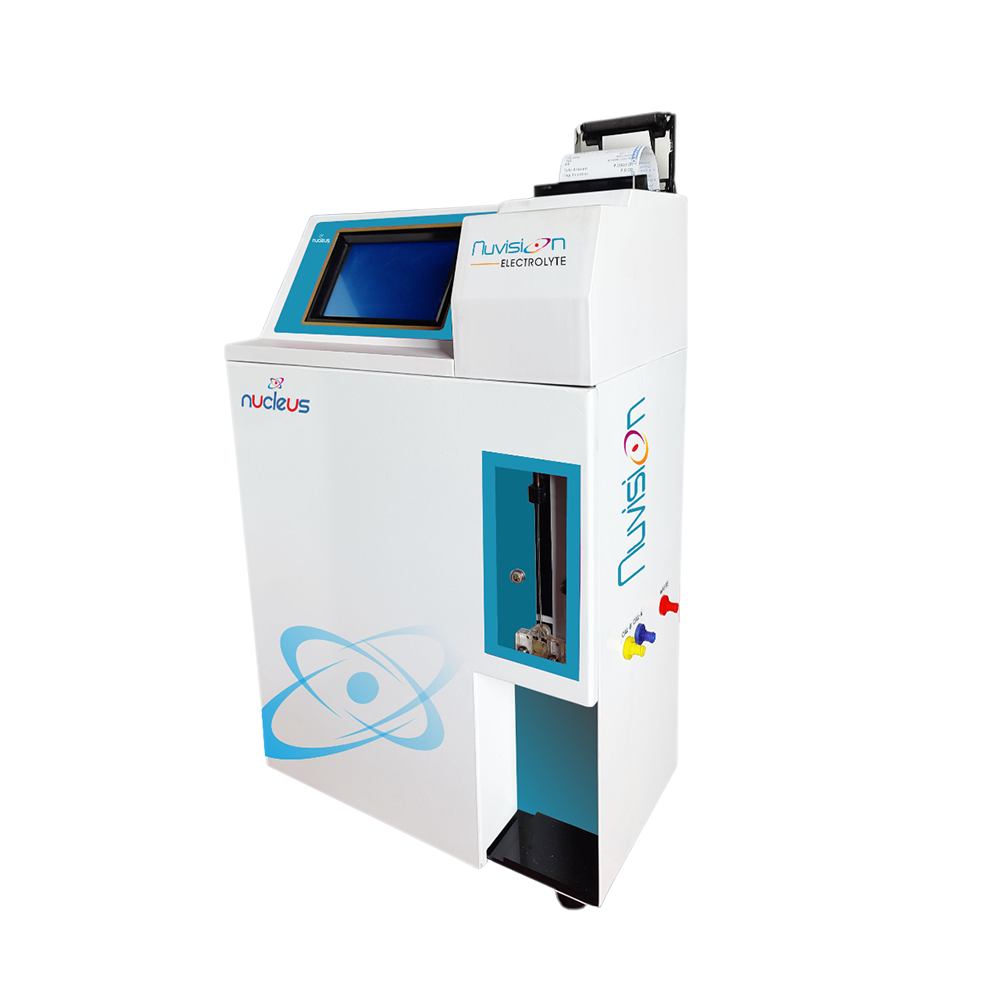

Electrolyte Analyzer

Features:--User friendly icon based operation integrated with advance microprocessor
-Calibration cycle: Automatic of Programmable: 2hrs./4 hrs / 6hrs, standby mode
-Liquid stable reagent - RFID reagent management in built
-Maintenance free ION SELECTIVE ELECTRODES
-Universal input voltage 95 to 265V / 50-60 Hz easy access for electrode assembly
Sample type: Whole blood / Serum / Plasma Urine Sample / CSF
Sample Volume: 120 ML Whole blood, Serum, Plasma
150 ML Capillary sample
400 ML Diluted (1:4) Urine sample
Units : mmol/L or mg/L
Printer : Thermal Graphics paper 57 mm wide
Easy paper loading
Quality Control : 3 Controls per test - Low, Normal & High
Quality control storage of the last 30 result
Levy - Jennings Charts
Sample Analysis : 60 seconds for Whole blood, Serum, Plasma / CSF
120 seconds for Urine Sample
LCD / Keyboard: Color - Touch Screen 5": 800 X 478
Data Output: Ethernet / USB
Data Storage: 1000 test result
Memory: SD card - 8 to 32 GB
Power / Dimensions: Voltage: 110-220V, Frequency: 50-60Hz, Maximum Power: < 40W, Temperature: 100 to 350 C, Maximum Relative Humidity: 80%, Dimensions: 12x12x16cms, Weight: 8kgs

Inquiry Now

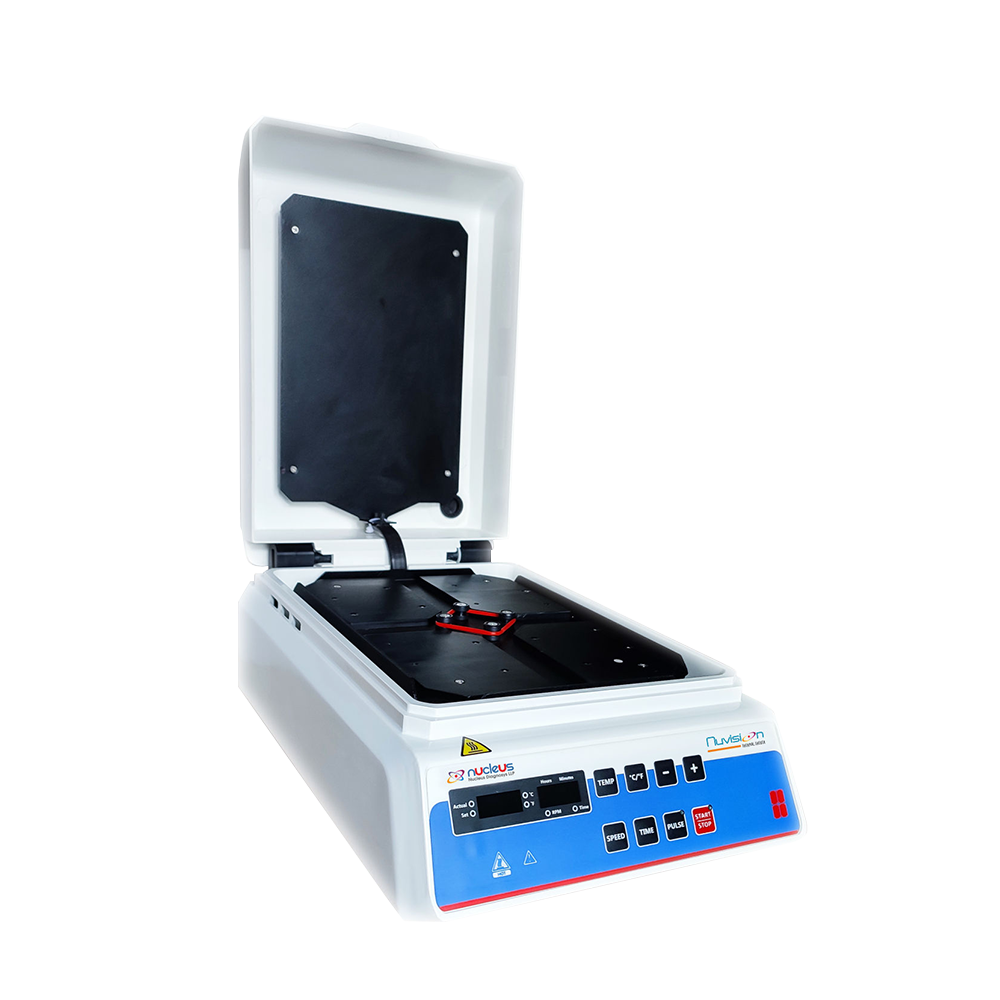

Thermal Shaker

Maximum number of microplates on the platform: 4
Supported microplate dimensions: 86 x128 x 20
Temperature range: ambient +3 up to 60
Temperature control accuracy: 0,1
Platform rotation type: orbital
Platform rotation orbit: 1.5
Platform rotation speed: 100 - 1300
Timer: continuos / 1 min - 999min
Ambient temperature range: from +4 to + 40
Relative atmospheric moisture at 20°C: max 80
Power supply: 100-240V; 50/60Hz
Power consumption: 140
External dimensions (length x width x height): 370 x 335 x 125
Weight: 9

Inquiry Now

Urine Analyzer

1.) Nuvision Semi Auto Urine Analyzer
2.) 32-bit RISC chip improves Reliability.
3.) Light weight and Portable design.
4.) High Performance Photoelectric components.
5.) Store up to 1000 results.
6.) User Friendly Interface.
7.) Easy to operate.
8.) Barcode reader included with the Machine.
9.) In-Built Thermal Printer;
10.)Compatible with all Nuvision Urinalysis strips (1 Para to 12 Para).

Inquiry Now
